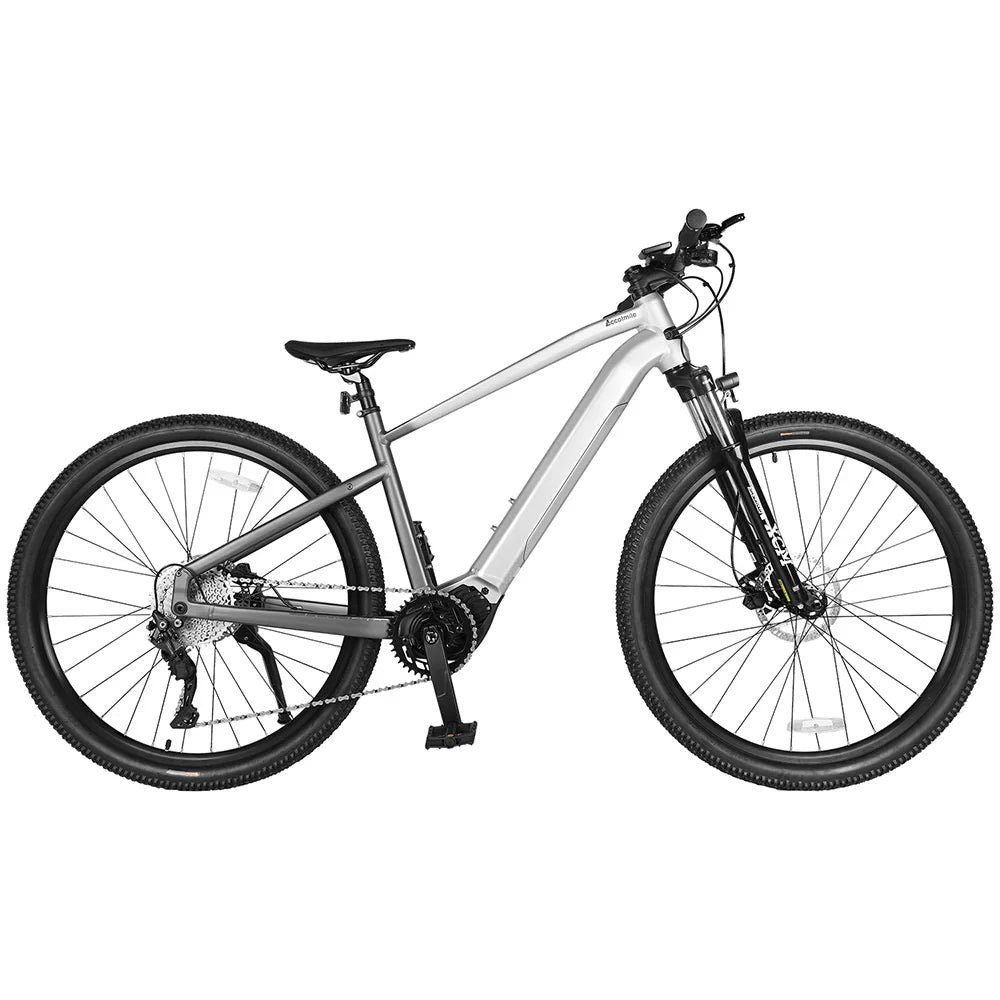

ACCOLMILE LIGHTNING BEAR ELECTRIC BIKE

ACCOLMILE LIGHTNING BEAR ELECTRIC BIKE

BAFANG M510 MID DRIVE MOTOR

M510 is an overturning upgrade of the eMTB performance motor. Comparing with the last generation, the max torque of M510 remains 95Nm, but the weight is reduced by 18% while the max power output is increased by 20%. Max cadence support is extended up to 120RPM.

LIGHTNING BEAR FRAME

The frame has passed tests that far exceed the standards of international top-tier brands. It has successfully undergone over a million cumulative fatigue tests following the standards for electric bicycles and mountain bikes (EN15194, ISO4210MTB). There is no doubt that it is one of the most robust and durable frames.

36V 14.0AH 504WH BATTERY

With a 504Wh battery capacity, its size and weight are smaller than equivalent products from Bosch and Shimano. It effortlessly achieves a range of over 100 kilometers on a full charge, and in lower gear settings, it can reach up to 150 kilometers. Even after 1500 cycles, the battery maintains over 80% of its performance and is also removable.

DM02 EBIKE DISPLAY

The user interface is designed for professional cyclists, with an enlarged real-time speed display. It also displays speed levels and real-time assistance power on both sides, along with information about distance traveled, current cadence, battery level, and time. There are five speed levels, each distinguished by a different color.

SPECIFICATIONS

E-BIKE

Motor

BAFANG M510 36V 250W Mid Motor (MM G522.250.C), max torque 95N.m, peak torque 130N.m top speed 25km/h, max cadence support is extended up to 120RPM

Battery

36V14.0Ah, 504Wh, full hidden integrated battery, removable for recharging

Display

DM02 0-5 level (CAN protocol)

Charger

STC-8139LC.36V(max42V) 2A.110-220V Battery plug.DC2.1.L:1200mm.

Wiring Harness

Custom Accolmile wiring harness

FRAMESET

Frame

6061 aluminum alloy mountain bike frame, bottom bracket motor mount, fully integrated and lockable downtube battery, full internal cable routing.

Fork

SR SUNTOUR XCM32, 110mm travel, lockout, 29 inch.

Seat Binder

Alloy, bolt-type 34.9mm

COCKPIT

Stem

Alloy, 31.8mm, 6-degree rise

Handlebars

6061 alloy, 6-degree backsweep, 12mm rise, 31.8mm clamp

Tape

Anti-slip grip, Lock-on

SeatPost

6061 alloy, 30.9mm

Saddle

Selle Royal Havac Light SRX 148mm

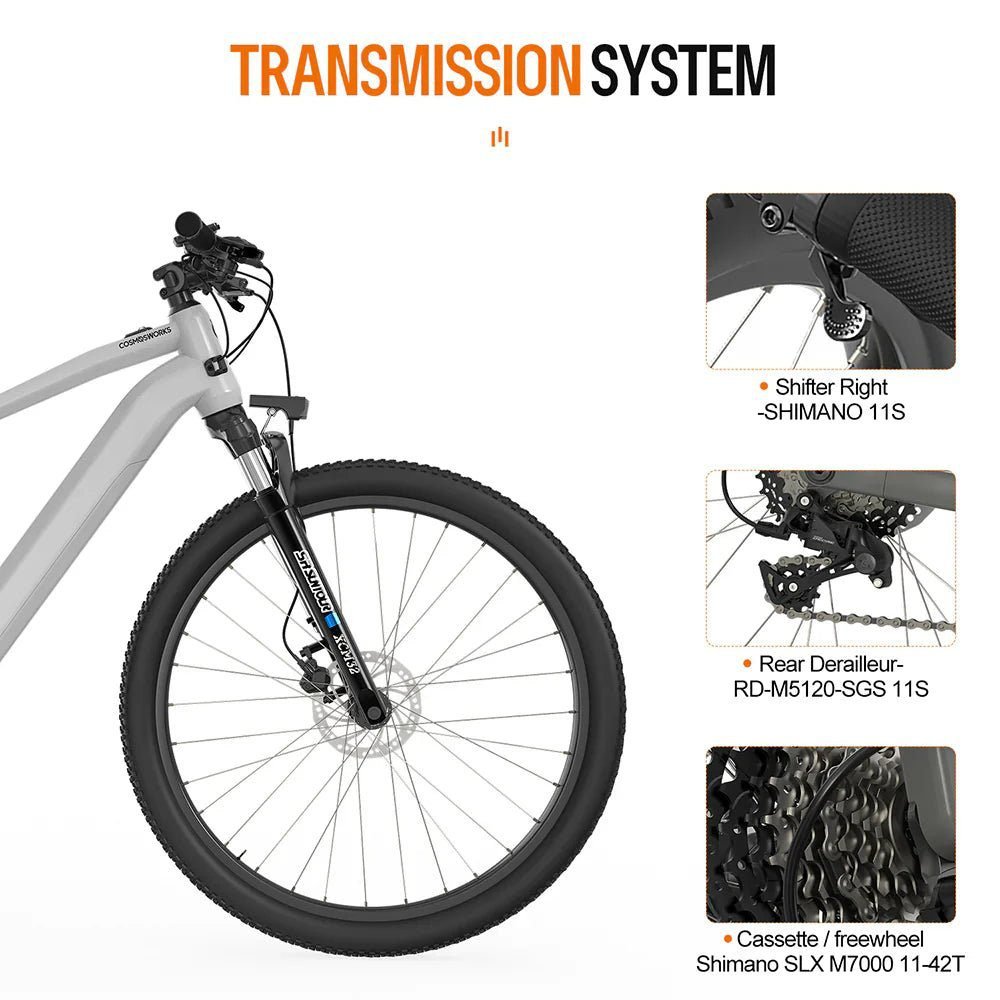

DRIVETRAIN

Rear Derailleur

SHIMANO DEORE, RD-M5100-SGS 11-speed

Shift Levers

SHIMANO DEORE, SL-M5100-IR M5100 11-speed

Cassette

SHIMANO SLX M7000 11-42T

Chain

KMC X11 122L, 11-speed

Crankset

Bafang CK A01.170mm

Chainrings

Bafang chainring 40T

BRAKES

Rear Brake

Tektro HD-M276 hydraulic disc brake.

Front Brake

Tektro HD-M276 hydraulic disc brake.

WHEELS

Rear Hub

ARC MT-009R 12*148mm, 32h

Front Hub

ARC MT-009F 15*100mm, 32h.

Rear Tire

Kenda K1153 29*2.35.

Front Tire

Kenda K1153 29*2.35.
